How to limit maximum height of GtkListBox inside of GtkGrid?

[OSA413 (Oleg Sokolov)]

So I’m trying to make an app with checkboxes with the buttons on the bottom of the window.

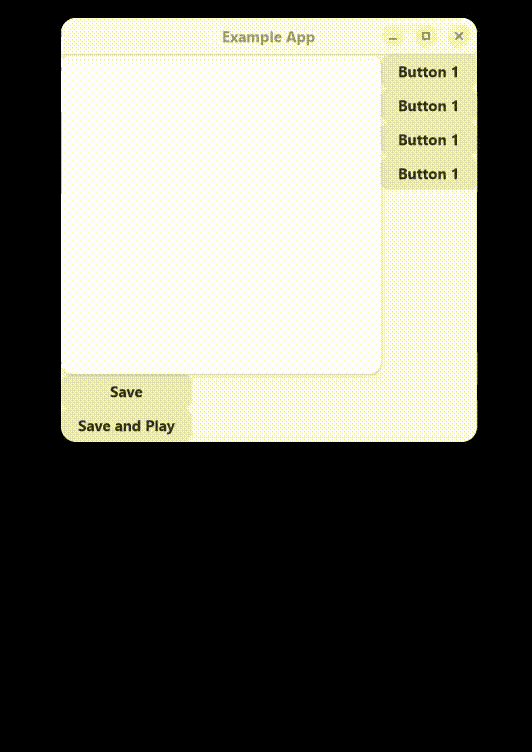

The problem is that the list extends vertically when I add a lot of items and it moves the buttons and extends window vertically, too. Is there some workarounds about it?

Here’s my window.ui (minimal, without things that don’t matter):

<?xml version="1.0" encoding="UTF-8"?>
<interface>
  <template class="ExampleApp" parent="GtkApplicationWindow">
    <property name="title">Example App</property>
    <child>
      <object class="GtkGrid" id="gtk_box">
        <child>
          <object class="GtkGrid">
            <layout>
              <property name="column">0</property>
              <property name="row">0</property>
            </layout>
            <child>
              <object class="GtkListBox" id="mod_list">
                <property name="visible">True</property>
                <property name="width-request">320</property>
                <property name="overflow">1</property>
                <property name="vexpand">false</property>
                <property name="height-request">320</property>
                <property name="selection-mode">none</property>
                <style>
                  <class name="boxed-list" />
                </style>
              </object>
            </child>
            <child>
            <object class="GtkGrid">
              <layout>
                <property name="column">1</property>
                <property name="row">0</property>
              </layout>
              <child>
                <object class="GtkButton">
                  <property name="label">Button 1</property>
                  <layout>
                    <property name="column">0</property>
                    <property name="row">0</property>
                  </layout>
                </object>
              </child>
              <child>
                <object class="GtkButton">
                  <property name="label">Button 1</property>
                  <layout>
                    <property name="column">0</property>
                    <property name="row">1</property>
                  </layout>
                </object>
              </child>
              <child>
                <object class="GtkButton">
                  <property name="label">Button 1</property>
                  <layout>
                    <property name="column">0</property>
                    <property name="row">2</property>
                  </layout>
                </object>
              </child>
              <child>
                <object class="GtkButton">
                  <property name="label">Button 1</property>
                  <layout>
                    <property name="column">0</property>
                    <property name="row">3</property>
                  </layout>
                </object>
              </child>
            </object>
            </child>
        </object>
      </child>
        <child>
          <object class="GtkGrid">
          <layout>
            <property name="column">0</property>
            <property name="row">1</property>
          </layout>
        <child>
          <object class="GtkButton">
            <property name="label">Save</property>
            <layout>
              <property name="column">0</property>
              <property name="row">0</property>
            </layout>
          </object>
        </child>
        <child>
          <object class="GtkButton">
            <property name="label">Save and Play</property>
            <layout>
              <property name="column">0</property>
              <property name="row">1</property>
            </layout>
            <property name="action-name">win.check_mod</property>
          </object>
        </child>
      </object>
        </child>
      </object>
    </child>
  </template>
</interface>

As you might have noticed, I tried to use properties overflow: 1 and vexpand (both false and False) but that didn’t work.

Update: I will probably replace GtkListBox with GtkColumnView Gtk.ColumnView

[OSA413 (Oleg Sokolov)]

Using a GtkScrolledWindow actually limited the width and height of the GtkListBox and made it scrollable.

Gtk.ScrolledWindow

Here’s an example of the layout (needs tweaking to make it look better)

<object class="GtkScrolledWindow">
  <child>
    <object class="GtkListBox" id="mod_list">
      <property name="visible">True</property>
      <property name="width-request">320</property>
      <property name="overflow">1</property>
      <property name="vexpand">false</property>
      <property name="height-request">320</property>
      <property name="selection-mode">none</property>
      <style>
        <class name="boxed-list" />
      </style>
    </object>
  </child>
</object>

[gwillems]

Hi,

A few tips:

• visible is already true by default
• vexpand is already false by default
• overflow should not be needed here, it has no impact on widget sizing
• for guaranteeing a minimal size, width/height-request shall be applied on the scrolledwindow instead
• you can use hscrollbar-policy = never to avoid horizontal scrolling (it seems you need only vertical scrolling in your example)

<object class="GtkScrolledWindow">
  <property name="width-request">320</property>
  <property name="height-request">320</property>
  <property name="hscrollbar-policy">never</property>
  <child>
    <object class="GtkListBox" id="mod_list">
      <property name="selection-mode">none</property>
      <style>
        <class name="boxed-list" />
      </style>
    </object>
  </child>
</object>
