I would like to have a tree-like view with labels left aligned for both branches and leaves. For example, see how “Recipes” is aligned with “Personal”:

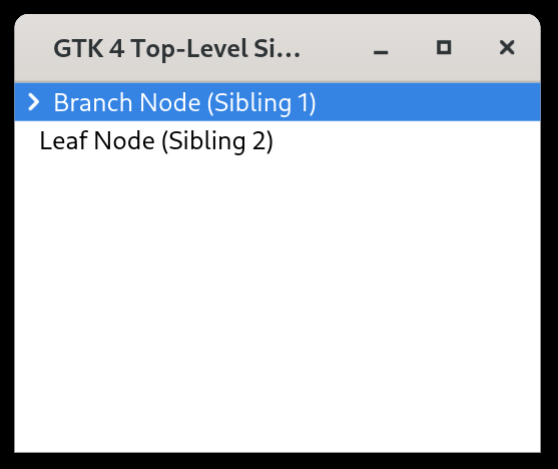

Presumably, indent-for-icon expander property should help with this when the expander is present. However, I am getting this:
See how “B” in Branch is shifted to the right as compared to the “L” in “Leaf”
Here is my code:
class ItemNode(GObject.Object):
def __init__(self, name, children=None):
super().__init__()
self.name = name
self.children = Gio.ListStore(item_type=ItemNode)
if children:
for child in children:
self.children.append(child)
class TopLevelSiblingsWindow(Gtk.ApplicationWindow):
def __init__(self, **kwargs):
super().__init__(**kwargs)
self.set_title("GTK 4 Top-Level Siblings")
self.set_default_size(300, 250)
# 1. Create the sub-children for our branch
sub_leaf_a = ItemNode("Sub-leaf A")
sub_leaf_b = ItemNode("Sub-leaf B")
# 2. Create the two primary nodes
branch = ItemNode("Branch Node (Sibling 1)", children=[sub_leaf_a, sub_leaf_b])
leaf_1 = ItemNode("Leaf Node (Sibling 2)")
# 3. Create a base ListStore and append BOTH items directly to it.
# This forces them to sit side-by-side at the very top level.
base_model = Gio.ListStore(item_type=ItemNode)
base_model.append(branch)
base_model.append(leaf_1)
# 4. Wrap it in a TreeListModel.
def create_model_func(item, *user_data):
if item.children.get_n_items() > 0:
return item.children
return None
# passthrough=False treats base_model as the literal starting layer
tree_model = Gtk.TreeListModel.new(base_model, passthrough=False, autoexpand=False, create_func=create_model_func)
# 5. UI Boilerplate (Selection, Factory, and ListView)
selection_model = Gtk.SingleSelection.new(tree_model)
factory = Gtk.SignalListItemFactory()
factory.connect("setup", self.on_setup_item)
factory.connect("bind", self.on_bind_item)
list_view = Gtk.ListView(model=selection_model, factory=factory)
scrolled_window = Gtk.ScrolledWindow()
scrolled_window.set_child(list_view)
self.set_child(scrolled_window)
def on_setup_item(self, factory, list_item):
expander = Gtk.TreeExpander(indent_for_icon=True)
label = Gtk.Label(xalign=0)
expander.set_child(label)
list_item.set_child(expander)
def on_bind_item(self, factory, list_item):
tree_row = list_item.get_item()
item_node = tree_row.get_item()
expander = list_item.get_child()
label = expander.get_child()
expander.set_list_row(tree_row)
label.set_text(item_node.name)
Is it a bug or there is another way to align labels?
